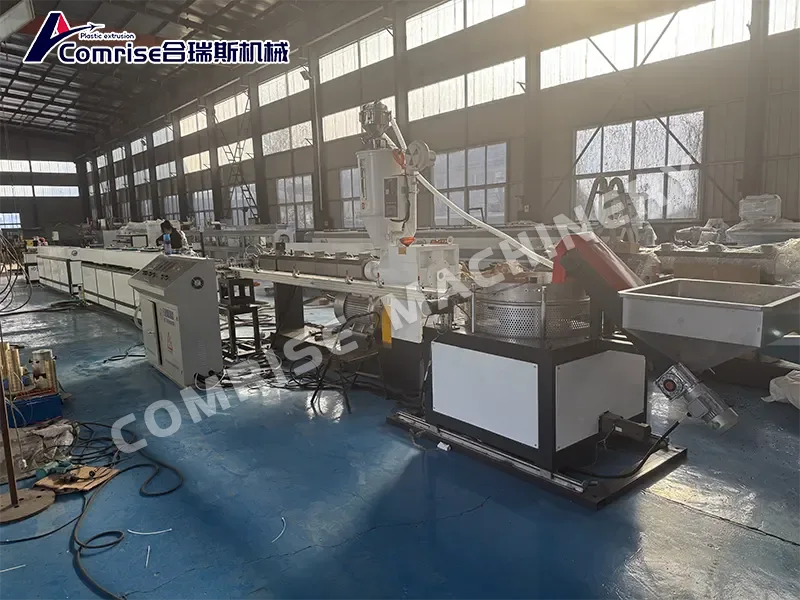

China High Quality Agricultural Drip Irrigation Pipe Machine

Comrise factory’s Agricultural drip irrigation pipe machine is divided into flat drip irrigation pipe machines, cylindrical drip irrigation pipe machines, and water belt machines，Labyrinth dropper strip pipe machine

The quality Agricultural drip irrigation pipe machines are mainly used in agricultural irrigation systems to accurately deliver water and nutrients to the soil at the roots of crops through low-pressure pipes and irrigators on capillary pipe.

Comrise are an China excellent supplier of plastic pipe machines,Choosing our machine would be your best choice

Its main uses include:

1. Precise irrigation: Water is evenly and slowly transported to the roots of crops through drip irrigation pipes, achieving precise irrigation for each crop.

2. Water and fertilizer conservation: Reduce water evaporation and leakage through local micro irrigation, and support synchronous application of water and fertilizer.

3. Soil management: Reduce soil compaction, enhance soil permeability, and promote root development.

4. Environmental Protection: Protect the agricultural production environment and reduce water resource waste.

Drip irrigation pipe machines play an important role in modern agriculture and are essential equipment for achieving efficient water-saving irrigation and precision agriculture.

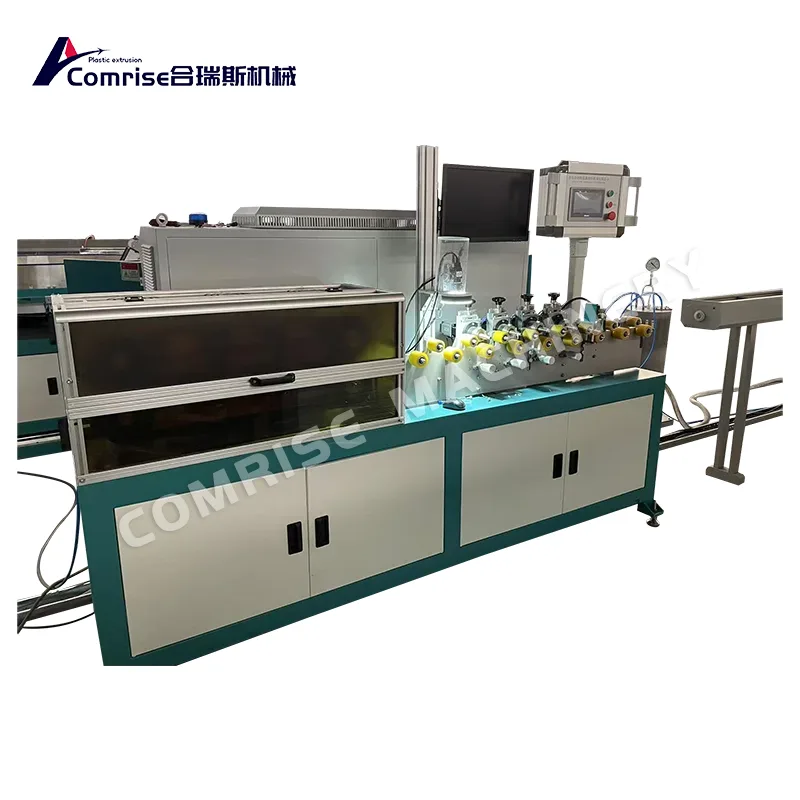

Falt drip irrigation pipe machine:

Comrise has developed an automatic screening machine for drip heads that can be produced using 100% pure recycled materials, reducing production costs while ensuring good quality of the produced pipes

1.24 hours non-stop to meet customer production needs

2. Machine head: using advanced German technology, no manual adjustment of pipe wall thickness is required, one click touch control for automatic adjustment

3. High production efficiency, with a production speed of up to 370m/min

4. Adjust the drip head speed/spacing online through the PLC screen, and make the drilling visible

5. Servo driven automatic drilling (precision control), synchronized with production speed through PLC.

6. The entire production line is fully automated and does not require manual operation after adjustment

Flat drip irrigation pipe machine can produce pipe diameters ranging from 16mm---20mm---25mm

The production line includes: screening pot - extruder - machine head - vacuum water tank - water tank - traction machine - punching machine - hub - winding machine

The fall drip irrigation pipe machine produced by Comrise has the characteristics of precise drilling, easy adjustment, stable production, easy operation, high production efficiency, and energy saving

Product Parameter

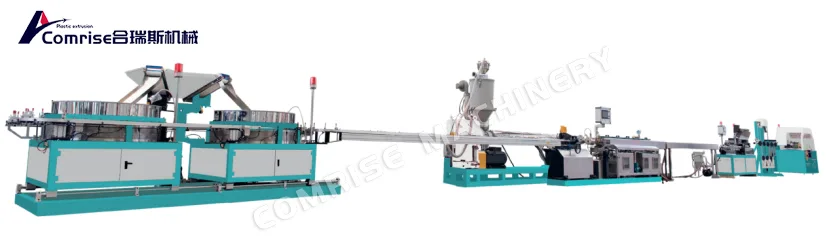

Cylindrical drip irrigation pipe machine

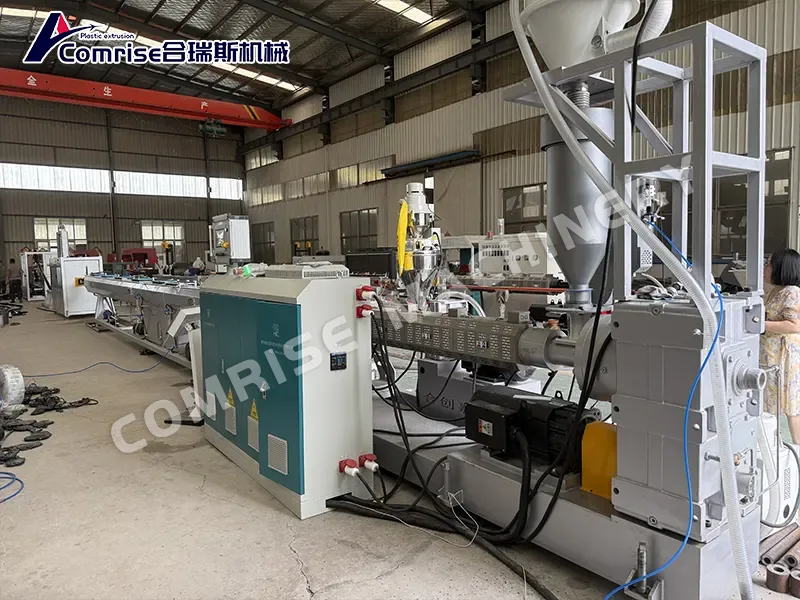

The cylindrical drip irrigation pipe production line is dedicated to high-speed extrusion molding of embedded patch drip irrigation tapes and is the core equipment for modern agricultural water-saving irrigation. The overall layout is compact, and the production line can be divided into five main parts

1. Efficient extruder, consisting of an efficient single screw extruder and a hydraulic screen changer, melts and plasticizes PE raw materials and stably transports them to ensure uniform plasticization and thickness of the pipes.

2. Drip head sieve pot, including automatic feeding to feed the drip head into the sieve pot, and screening qualified drip heads through infrared device to achieve synchronous operation of screening and detection.

3. Vacuum water tank and cooling water tank, the pipes are passed through a vacuum box to ensure roundness and inner diameter standards, and then rapidly cooled and formed through multi-stage water circulation to ensure the quality of the pipes.

4. Drilling machine and traction machine, equipped with high-quality tool drilling machine, can instantly punch holes at the corresponding position of the drip head flow channel, and cooperate with the track type traction machine to maintain constant tension, ensuring accurate hole position.

5. The winding machine adopts a duplex position winding machine, which is easy to operate

The whole machine adopts PLC centralized control, touch screen human-machine interface, real-time monitoring of extrusion speed, droplet spacing and meter weight, high degree of automation, and can produce tens of thousands of meters per day

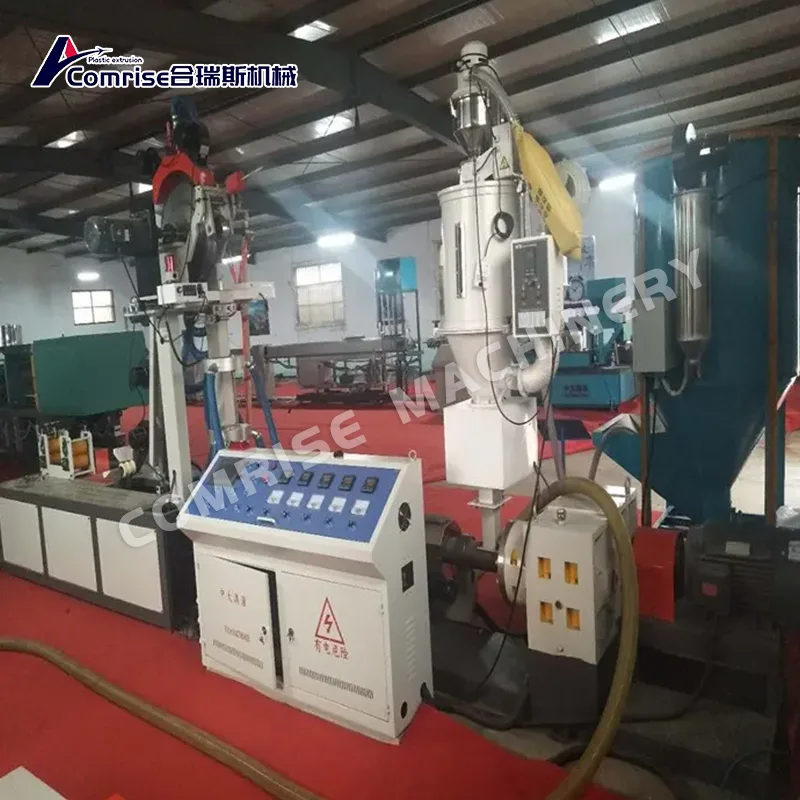

Labyrinth drip irrigation pipe machine

The maze drip irrigation pipe production line is a core equipment in the field of modern agricultural water-saving irrigation, focusing on the production of embedded maze drip irrigation pipes.

Its working principle is to melt and plasticize PE raw materials through an extruder, and extrude them into drip irrigation pipes with maze channels in one go through precision molds. Form a labyrinth flow channel with strong anti blocking properties and uniform water discharge, without the need for subsequent drilling and droplet installation, greatly improving production efficiency.

This machine integrates an extruder, vacuum water tank, cooling water tank, traction machine, punching machine, and rewinding machine, achieving full process automation. The drip irrigation pipes produced by it have three major advantages: firstly, the unique flow channel design effectively prevents sediment blockage due to turbulent flow; Secondly, the thickness of the pipe wall is uniform, with strong tensile and weather resistance, and a service life of over 5 years; Thirdly, the laying length is large, reaching over 100 meters, significantly reducing field construction costs.

Compared to traditional irrigation, which saves over 60% of water, the yield increase effect is significant. Combined with intelligent control system, it can accurately regulate water and fertilizer transportation

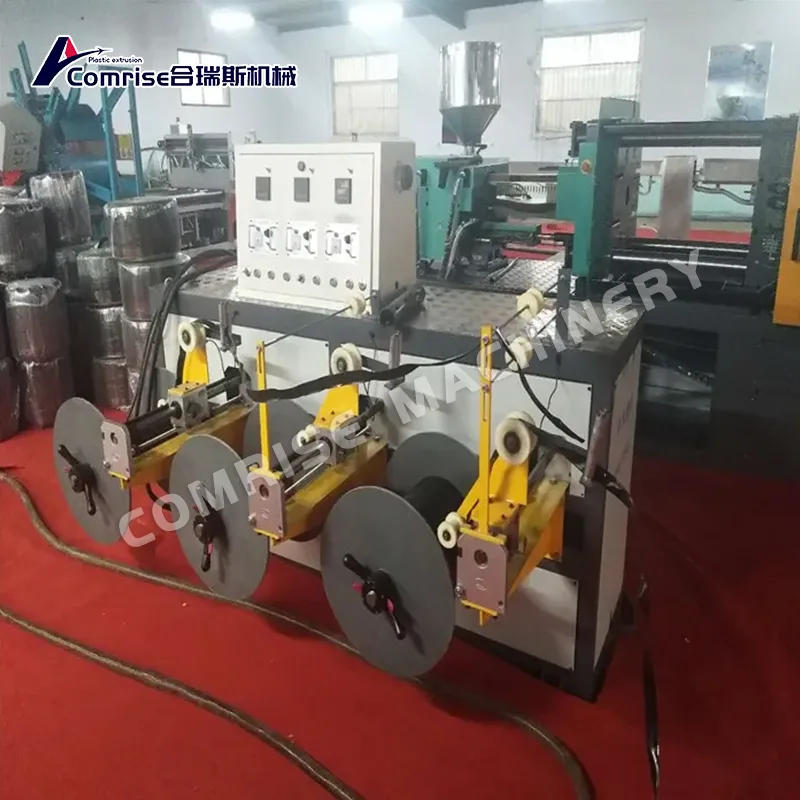

Water Belt Machine

The water belt production line is mainly used to manufacture various types of water belts, including micro spray water belt pipe and fiber-reinforced water belt pipe, which are widely used in agricultural irrigation, fire emergency and industrial water supply fields.

The micro spray belt production line is specifically designed for producing thin-walled porous water belt, suitable for agricultural water-saving irrigation. The equipment includes extruders, vacuum water tank, punching machines, and automatic winding machine, which achieve uniform water flow spraying through precise punching. Its products are thin, soft, and easy to lay, making it an ideal choice for drip irrigation of vegetable greenhouses and field crops.

The fiber-reinforced water belt production line is used to manufacture high-strength water belt pipe that are resistant to high pressure. The equipment combines fiber weaving and extrusion coating technology, with polyester thread as the skeleton and inner and outer coating layers, greatly improving the pressure bearing and tensile resistance of the pipe body. This equipment is mainly used for firefighting, industrial and mining drainage, and high-pressure agricultural water supply scenarios. The finished product has the characteristics of high pressure resistance, wear resistance, and long service life.

Product Parameter
